Automaic guns

at the moment some sites are available in german language only





The SYS.CON® automatic guns H2000 and BF2000

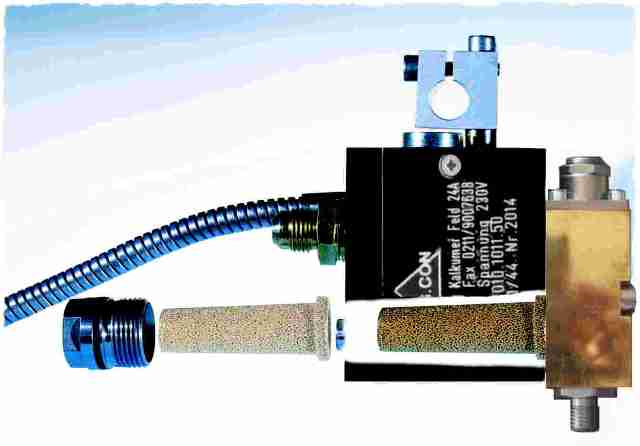

We make first class technology payable. This new automatic guns complete with filter has a great future. The integrated, large area filter of sintered metal is just in front of the flange-mounted HotMelt module.
Behind the filter the hot melt only passes the module itself. In this way nozzle obstructions by impurities in the glue are being prevented – especially due to the application of our modules H2000 and BF2000 that guarantee, due to their constructive features, a trouble-free flow of the hot melt.

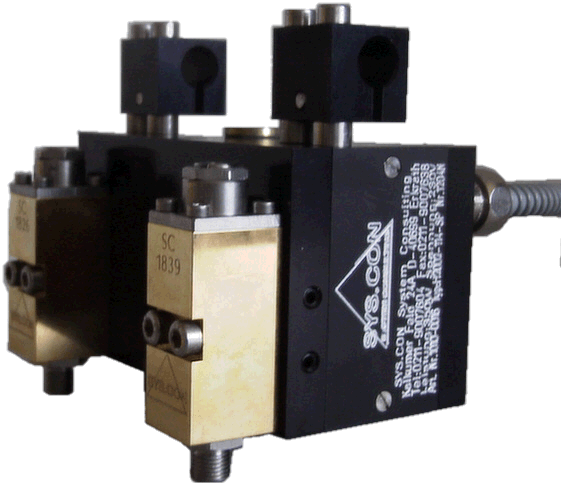

The geometry of the SYS.CON® H2000 gun corresponds to Nordson® H200. The diagonal from fixing device to nozzle top is identical so that when exchanging, neither mechanical nor control technical modifications at the main unit have to be executed. All H2000-heads are equipped with SYS.CON®H2000 modules that are controlled by a 3/2-way-solenoid valve, as they open by air pressure and close by spring pressure..


The automatic guns SYS.CON®BF2000 corresponds in its construction to the gun type H2000. However, it is equipped with a SYS.CON®-module BF2000 opening and closing by air. In this way, quicker closing times are achieved. The control takes place accordingly by a 4/2-way valve
