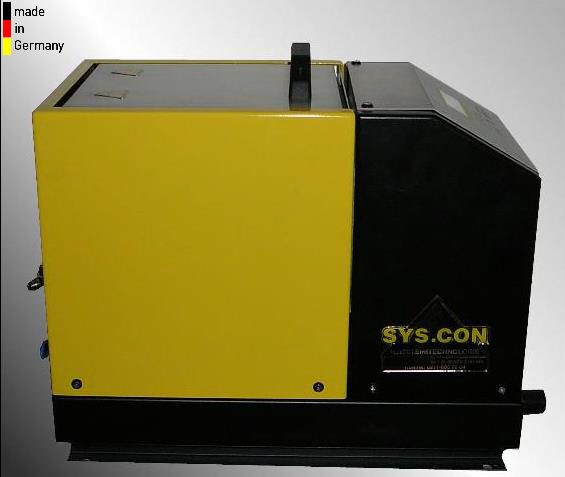

The NORDSTAR 5.0 is an unit with very compact design equipped with all features of a modern hot melt system. The opeartin is self-explanatory and very easy.

The modular concept allows the additional installation of further guns and hoses at any time without changing the main board.

Of course this unit can be delived compatible to all known systems, alternatively equipped with sensor NI120 or PT100.

Technical details:

• Tank capacity 5.0 kg
• Melting capacity 6 kg/Std.
• nonstick cated tank (Alu)
• Large tank orifice suitable for blocks
• Up to 6 hose connectors
• Modular extendable
• Alternatively PT100 oder NI120 control sensors
• horizontal mounted, double action piston pump 14:1
• Standby temperature and on/off-funktion controlable via external SPS, too
• self-optimizing temperature control (7 channels)
• Failure informaton with localizing
• Free programmable under– and over temperatur protection for each channel
• 7 days timerr
• Parent machine interlock
• Free programmable delay of pump start
• Alternatively sequential or parallel heating
• Alternatively on mounting frane or blocks
• Multilanguage menu
• CE certfied. Made in Germany

Connection data:

Voltage 1N~230V +/- 10%  50HZ +/- 2%

Max. wattage. 3,6 KVA (5,4 KVA)

Wattage heater tank 1,8 KVA

Max. adjustable tempearture: 200° C

Air pressure 6-8 bar oil free

IP40

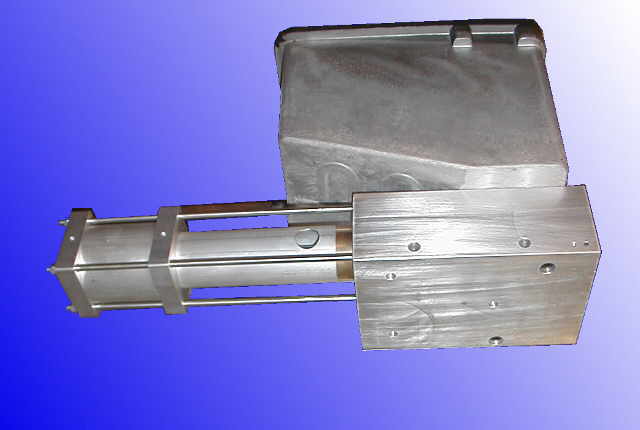

Tank with piston pump

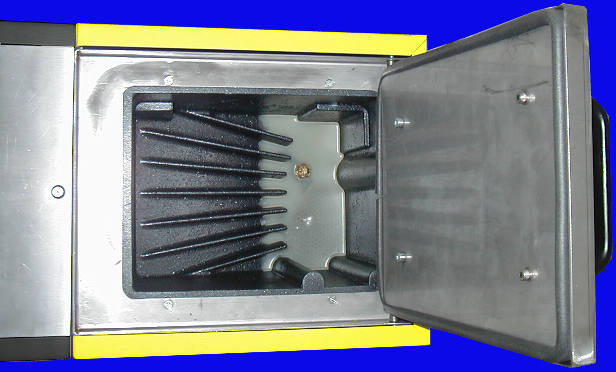

Comfortable refill

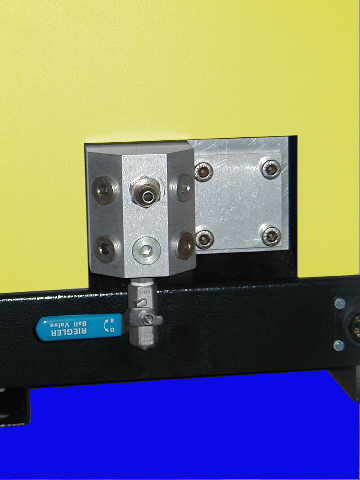

Hose connection and outflow
